NetApp Controllers



  • Front View of Current NetApp FAS/AFF models
    • FAS2520HA
    • FAS2552HA
    • FAS2554HA
    • FAS/AFF8020HA
    • FAS/AFF8040HA
    • FAS/AFF8060HA
    • AFF8080HA (Single Chassis)
    • FAS/AFF8080EX (Single Controller)
    • FAS2650
    • FAS8200
    • FAS9000
    • AFF A300
    • AFF A700
  • Labeled with controller type,model, node number, and node name
    • Edit in Shape Data Window
    • Or
    • Right-Click – Properties

Stencil:

  • DontPokeThePolarBear-NetApp-Controllers-Stencil-<DD-MM_YYYY>

Source of original shapes:

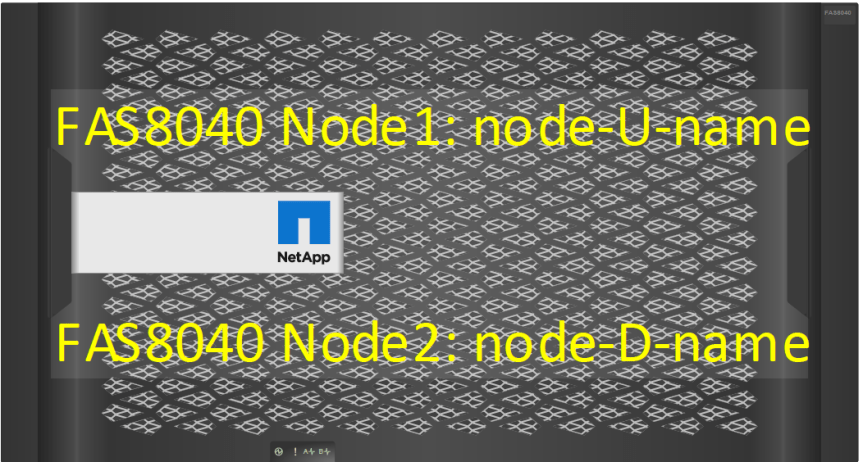

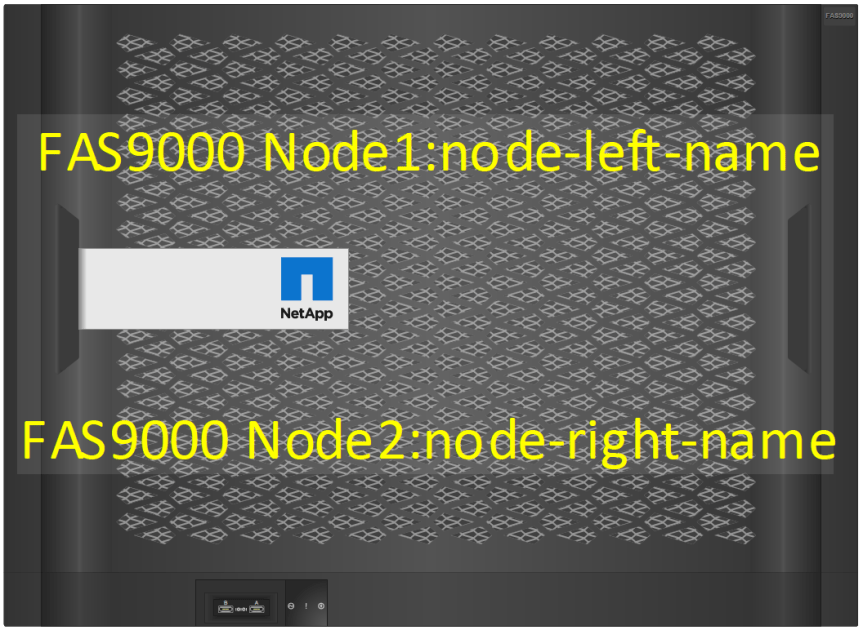

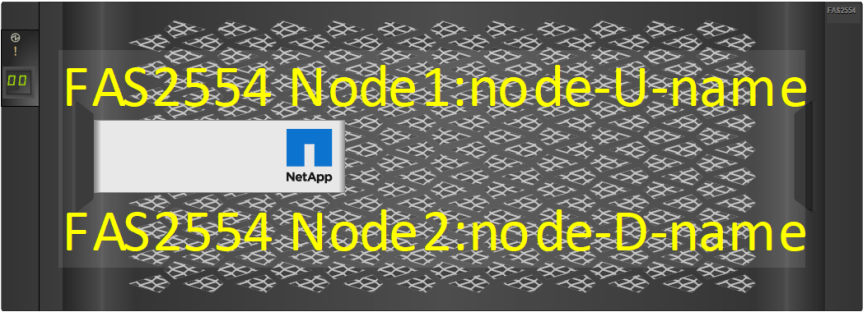

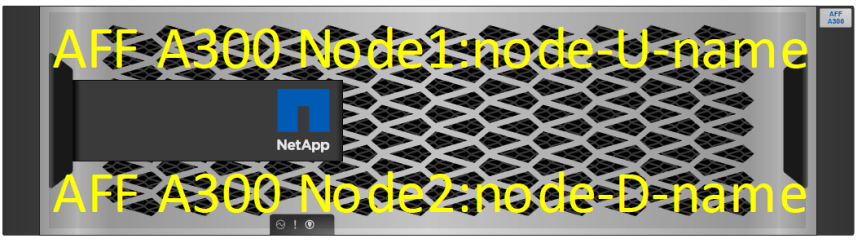

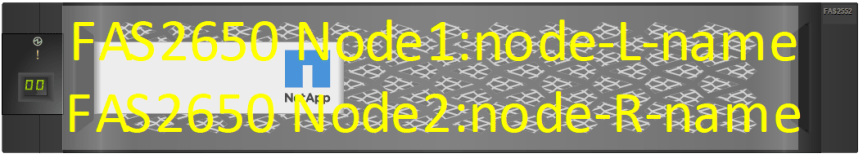

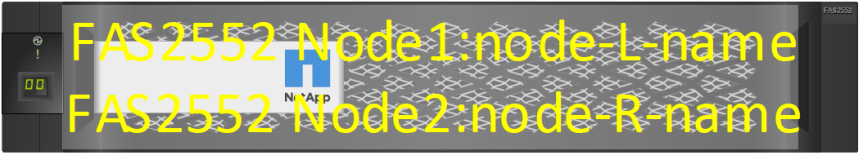

Examples:

screen-shot-2016-11-08-at-22-19-32screen-shot-2016-11-08-at-22-19-44screen-shot-2016-11-08-at-22-19-56screen-shot-2016-11-08-at-22-20-43screen-shot-2016-11-08-at-22-21-13screen-shot-2016-11-08-at-22-21-34
