Legacy NetApp shapes



Older NetApp controllers & shelves

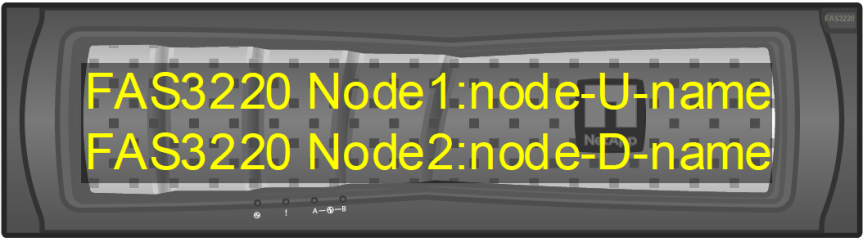

• FAS3220 Dual Controller in one chassis
• FAS32x0 Single Controller in one chassis
  • 3210,3220,3240,3250,3270 models
  • Use Shape data to change

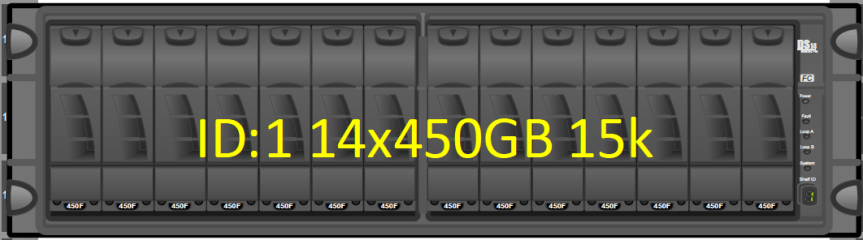

• DS14Mk4 FC disk shelf
• DS4243 disk shelf
• No rear view shapes for disk shelves
• Limited data fields

Stencil:

• DontPokeThePolarBear-NetApp-Controllers-Stencil-<DD-MM_YYYY>
• DontPokeThePolarBear-NetApp-Diskshelves-Stencil-<DD-MM_YYYY>

Source of original shapes:

• http://www.visiocafe.com/netapp.htm

Examples:
