Switches & Patch Panels

Switch and Patch Panel shapes to illustrate/document networking connectivity

• Device Types:
  • 1GbE Management Switch
    • Netapp 1601
  • 10GbE Cluster Interconnect Switch
    • NetApp 1610
    • Cisco 5596
  • Front-End LAN 10GbE
    • Cisco 5548UP
    • Brocade VDX6740
  • Front-End SAN 8/16 Gbps
    • Brocade 6505
    • Brocade 6510
  • Back-End SAN 16 Gbps
    • Used with Metrocluster setups
    • Brocade 6505
    • Brocade 6510
  • 24/48 port patch panel
    • Generic Patch Panel
  • ATTO Bridge
    • For MetroCluster
    • ATTO 6500N
      • 8G FC / 6G SAS
    • ATTO 7500N
      • 16G FC / 12G SAS
• Model may not be the same as customer is using, change to correct model if required
• Front-End Switches might not be in the same rack as NetApp system
• In this case draw switch only to rear view
• Shape Text: Device Type & System Name
• System Name can be changed in Shape Data / Properties

Stencils:

Switches:

• DontPokeThePolarBear-Essentials-Switches-Cluster-Stencil-<DD-MM-YYYY>
• DontPokeThePolarBear-Essentials-Switches-LAN-Stencil-<DD-MM-YYYY>
• DontPokeThePolarBear-Essentials-Switches-SAN-Stencil-<DD-MM-YYYY>
• DontPokeThePolarBear-Essentials-Switches-MGMT-Stencil-<DD-MM-YYYY>

Patch Panels:

• DontPokeThePolarBear-Essentials-Cables-Stencil-<DD-MM-YYYY>

Source of original shapes:

• http://www.visiocafe.com/netapp.htm
• http://www.cisco.com/c/en/us/products/visio-stencil-listing.html
• https://search.brocade.com/?q=visio%20stencils

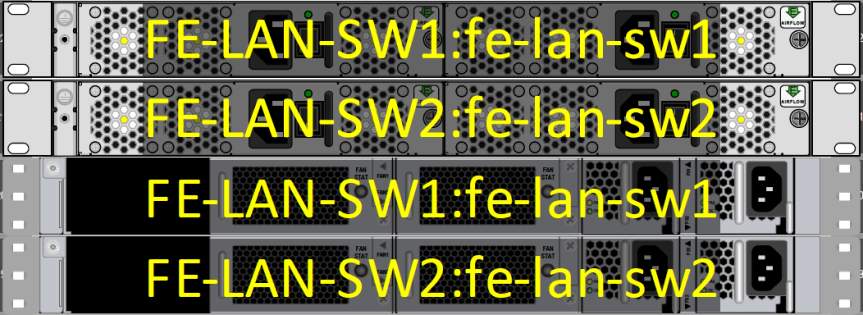

Examples:
