Visio by DPTPB: 1GbE Management Switch stencil (V2)

March 15, 2017 update notes for Visio by DPTPB stencil collection.

Redesigned all existing 1GbE Management Switch shapes

• All data now in top-level shape (Grouping Box)
• Rear view shapes have now connection points matching rear view rack shapes
• more info on design changes in prior post
• easier to use/update/add shapes



Reorganized shapes in different order within the stencil



• Brocade 1GbE Switch shapes
  • ICX7250-48
• Cisco 1GbE Switch shapes
  • Nexus NX-2248
• HPE 10GbE Switch shapes
  • HPE 55130
• NetApp 1GbE Switch shapes
  • CN1601

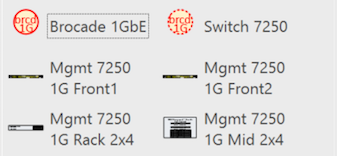

Picture: Brocade 1GbE switch shapes in Visio “Shapes” window

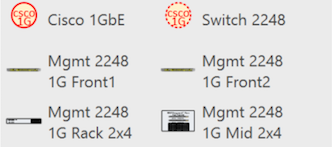

Picture: Cisco 1GbE switch shapes in Visio “Shapes” window

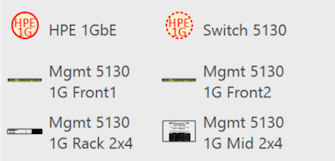

Picture: HPE 1GbE switch shapes in Visio “Shapes” window

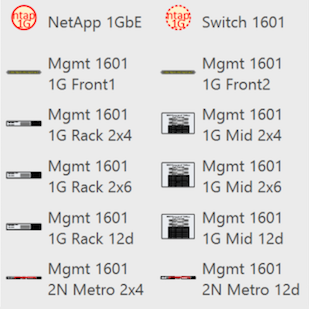

Picture: NetApp 1GbE switch shapes in Visio “Shapes” window

New Brocade ICX 7250-48 switch shapes

• New front and rear views shapes for Brocade ICX 7250-48
• 1GbE Switch
• 48 x 1GbE ports
• 8 x 10GbE ports
  • 2 used for stacking / ISL
  • 6 more 10GbE available with additional licensing
• Labeled with
  • 1GbE Management
• Port information pre-populated to display normal Nutanix use case
  • Ports 1/1-1/48 = 1GbE
  • Ports 1/X1 – 1/X8 = 10GbE
• Can be used with NetApp as well

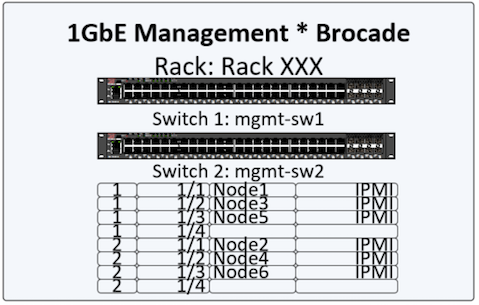

Picture: Brocade ICX 7250 switch front view DPTPB shapes

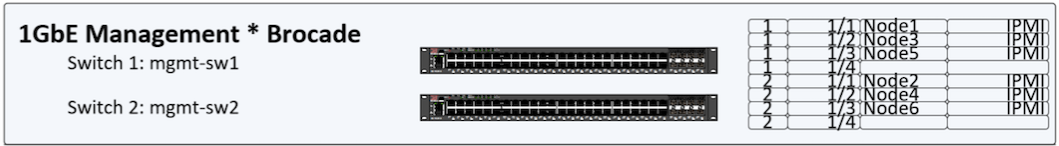

Picture: Brocade ICX 7250 switch rear view DPTPB shape (rack variant)

New HPE 1GbE switch shapes

• HPE 5130 48x 1GbE + 4x 10GBE switch DPTPB shapes
• 1GbE Switch
• 48 x 1GbE ports
• 2 x 10GbE sfp+ ports
• Front and Rear view shapes
• Original Visio Shapes by VXDFX

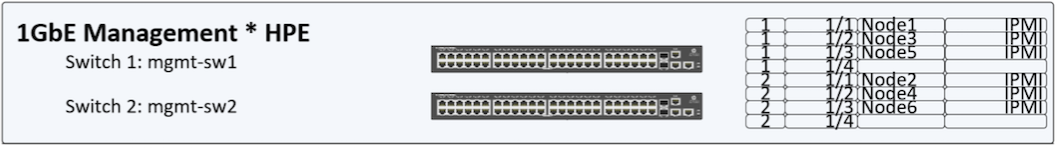

Picture: HPE 5130 1GbE switch front view DPTPB shapes

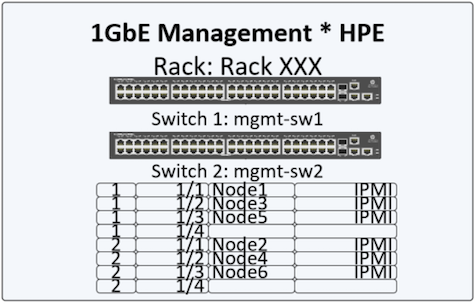

Picture: HPE 5130 1GbE switch rear view DPTPB shape (rack variant)

Downloads

New switch shapes are part of NetApp / Nutanix stencil packages, available for download
