April 3, 2017 update notes for Visio by DPTPB stencil collection.

Executive Summary

• All DPTPB NetApp Cluster Interconnect switch shapes have been updated, using the same design as recently upgraded 10GbE and 1GbE switches. More info on design changes for switch shapes can be found in my blog post: Visio by DPTPB: Update Notes for All Switch stencils.



NetApp CN1610

• 16-port 10GbE switch by NetApp
• Only allowed usage is as Cluster Interconnect Switch
• Pre-cabled with four ISL cables, 12 ports free
• Original switch shape by NetApp
•  Variants:
  • Rack 2×4
  • Rack 12d
  • Mid 2×4
  • Mid 12d

Switch Properties:

• Click shape to show data in Shape Data Window
  • Switch Number
  • Site Name for Switch (typically only used with MetroCluster)
  • Switch Name Body
  • Port assignments
  • Edit as required and device label and port assignments will change accordingly

Picture: NetApp CN1610 DPTPB shape (front view)

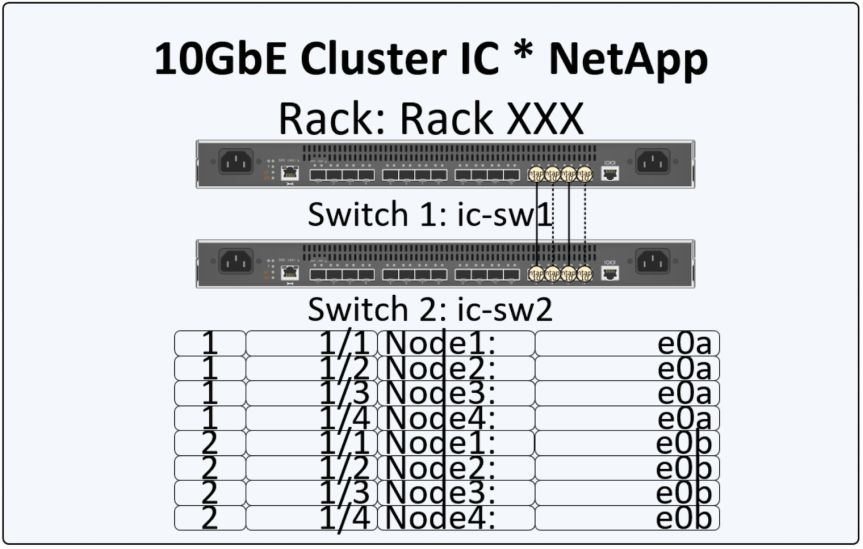

Picture: NetApp CN1610 DPTPB shape (12d Rack, rear view)

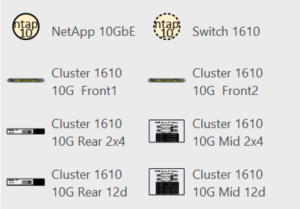

Picture: NetApp CN1610 DPTPB shapes in Visio “Shapes” window

Cisco Nexus 5596

• 2U 48-port 10GbE switch by Cisco
• Used in larger NetApp clusters where more than 12 node ports are required
• Original switch shape by Cisco
• Variants
  • Mid 12d
  • Rack 12d

Switch Properties:

• Click shape to show data in Shape Data Window
  • Switch Number
  • Site Name for Switch (typically only used with MetroCluster)
  • Switch Name Body
  • Port assignments
  • Edit as required and device label and port assignments will change accordingly

Picture: Cisco Nexus 5596 DPTPB shape (front view)

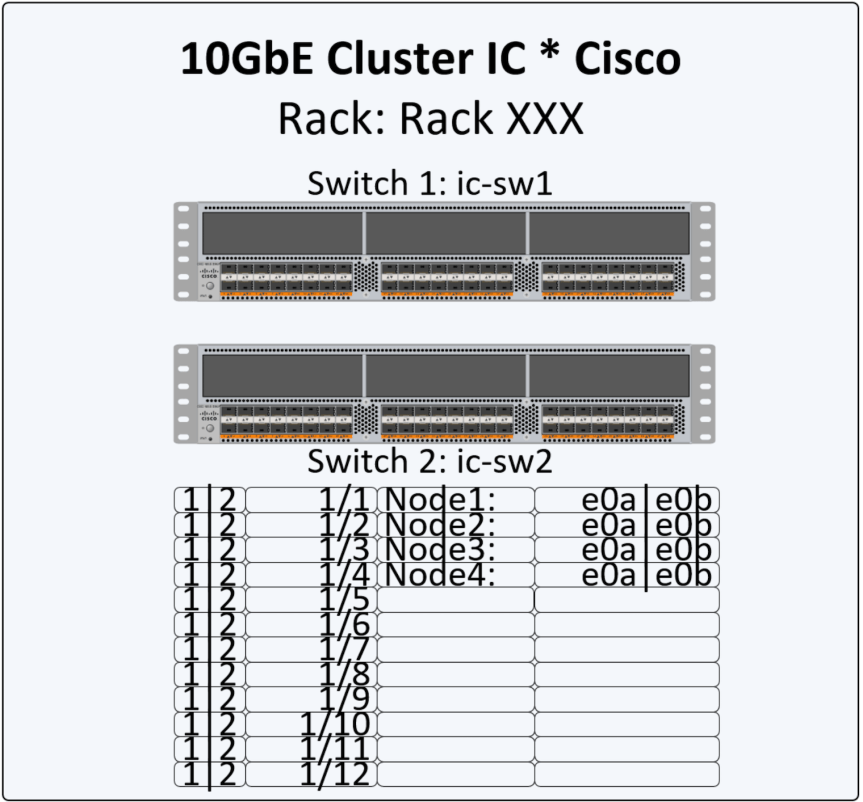

Picture: Cisco Nexus 5596 DPTPB shape (12d Rack, rear view)

Picture: Cisco Nexus 5596 DPTPB shapes in Visio “Shapes” window



Cisco Nexus 3132Q-V

• 1U 32-port 40GbE switch by Cisco
• Original switch shape by Cisco
• Variants
  • Mid 12d
  • Rack 12d

Additional notes in my blog post: Visio by DPTPB: 40GbE / 32 GB FC Switch shapes

Picture: Cisco Nexus 3132Q-V DPTPB shape (front view)

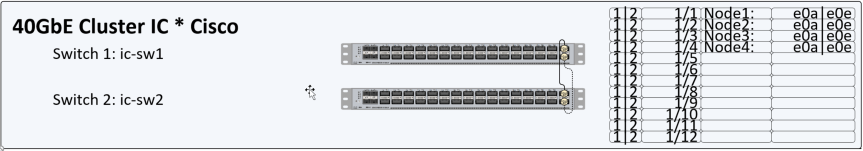

Picture: Cisco Nexus 3132Q-V shape (12d Rack, rear view)

Picture: Cisco Nexus 3132Q-V DPTPB shapes in Visio “Shapes” window

Downloads

DPTPB Cluster Interconnect visio shapes are part of NetApp stencil package. Available for download at downloads pages.
