Cable Decoder Boxes

These are usage based shapes, deciphering cable coding.  Mostly aimed at documenting NetApp usage, but can be used or modified for other purposes as well. I have also included Nutanix specific cable decoder box even though I don’t have any other Nutanix specific shapes in my stencils (yet).

Otherwise their isnt’ much to say about these. It would be like explaining a GUI, if you have to do that, your GUI isn’t very good:).

There are few variations of cable decoder boxes in the Cables stencils. Have a look and choose the one you like or make your own.

Examples:

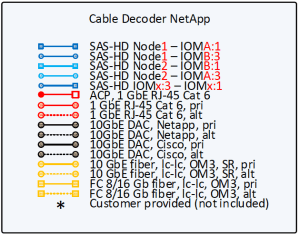

Example: Generic NetApp Cable Decoder Box

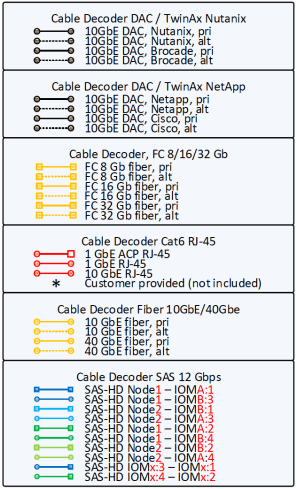

Example: Separate Cable Decoder boxes by Cable Type

Example: NetApp Fabric MetroCluster Cable Decoder Boxes

Example: Nutanix Cable Decoder Box
